Description:

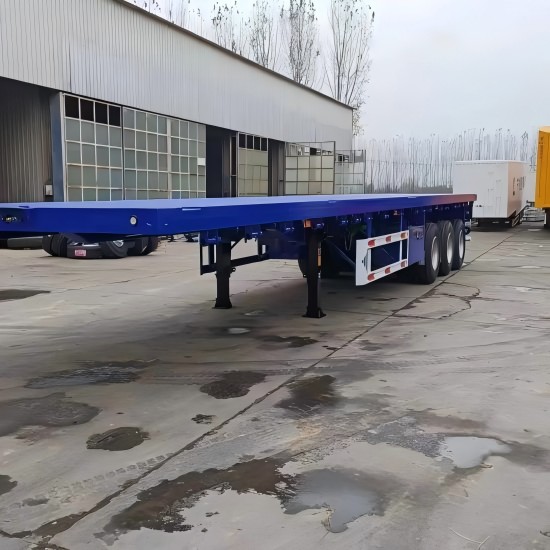

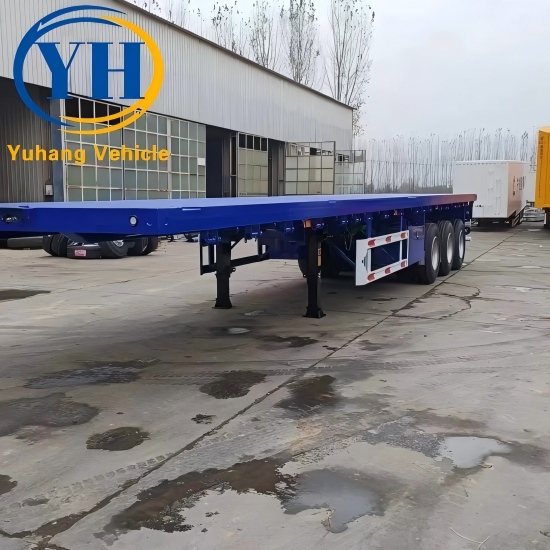

What you are looking at now is a 20ft container flat bed vehicle, which is a trailer without fences or side panels, with a flat body and no fixed cargo restrictions. It is composed of a sturdy flatbed chassis and wheels and can be used to transport various types of cargo, such as: containers, wood, etc.
Our flatbed semi trailer provides an open loading space. Cargo can be loaded and unloaded from the side or top without opening doors or other restrictive structures, and it can be adapted to a variety of mechanical equipment for operation. This greatly saves labor costs and improves work efficiency.
At the same time, the 20ft container flat bed vehicle can be used alone or in combination with other types of trailers or tractors. YUHANG factory can customize and adjust the length, width and loading capacity of the trailer.

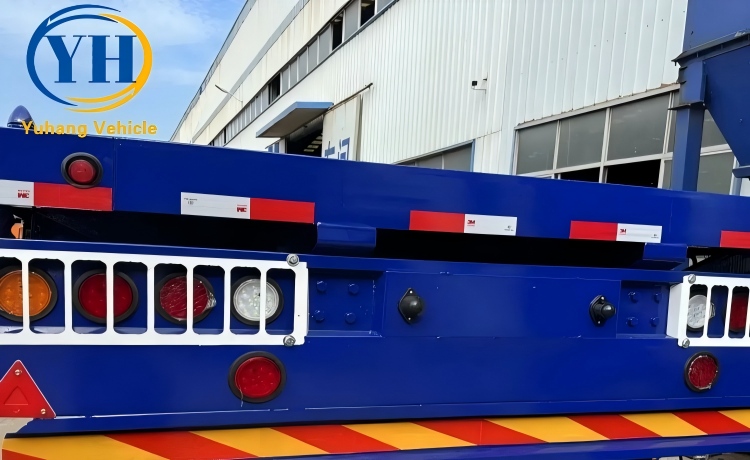

20FT Container Flat Bed Vehicle for Sale
Advantages:
1. The main beam is made of high-strength steel plate material, which further improves the loading capacity and transportation performance of the container flat bed vehicle.
2. There are 9 crossbeams at the bottom of the trailer, and the distance between the two tilting brackets is 500mm, making the structure of the trailer more sturdy and durable.
3. Advanced robot welding technology, high welding quality, firm and reliable welding points, dense welds, 30% higher than traditional manual welding.
4. High-quality container twist locks to ensure safe and stable cargo transportation.
20FT Container Flat Bed Vehicle for Sale
20FT Container Flat Bed Vehicle for Sale
Specifications:
Dimension(mm): 12500x2500x1550mm
Loading Capacity(ton): 30-80 tons
Axle: 3 axle, 13t/16t ,FUWA/BPW brand
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: mechanical suspension or air suspension
Spring Leaf: 90(w)mmx13(thickness)mmx10 layers or 100mmx12mmx12 layers
King Pin: JOST brand 2.0 or 3.5 inch
Landing Gear: JOST brand 28 ton
Main Beam: height 500mm, upper plate 14mm, middle plate 8mm, bottom plate 16mm, material Q345 steel
Side Beam: 16mm or 18mm steel channel
Platform: 3mm-thick checkered plate
Twist Locks: 4, 8, 12pcs
Valve: WABCO valve
ABS: optional
Light: LED light
Voltage: 24V
Socket: 7-pin socket
Tool Box: size 1m x 0.5m x 0.5m
Painting: sandblasting, anti-rust primer
FAQ:
Q1: Can you meet my special needs?
A1: Of course. Because we are a direct manufacturing factory, we have experienced technical engineers and advanced production technology. We can provide you with professional customized trailer transportation solutions at any time.
Q2: How can I trust you?
A2: We have nearly 20 years of experience in trailer manufacturing and exporting, and have accumulated a lot of customer groups and customer reviews, which can be provided to you for free reference.
Q3: How long does it take for you to complete a trailer?
A3: This is based on the factory's production plan and order quantity, usually 15 working days.
Q4: Can I visit your factory?
A4: This is very pleasing. We welcome every new and old customer to visit the YUHANG factory at any time, and we provide you with a full range of reception services.
Q5: What is your after-sales policy?
A5: We have strict quality inspections on all trailers sold. At the same time, we provide a 1-year free quality assurance plan and perfect after-sales service for major components to safeguard the actual rights and interests of customers.
