Description:
YUHANG brand new tipper truck trailer have different load capacities, and the common loading volumes are: 30 cubic meters, 35 cubic meters, 40 cubic meters, 45 cubic meters, and the maximum is 90 cubic meters. Our dump semi trailer have stable transportation performance and are safe and reliable when used.
This type of dump trailer is usually used to load and transport heavy bulk cargo. This requires that the cargo compartment of the dump trailer must be sturdy and durable and able to withstand a lot of weight pressure. At the same time, the dump truck trailer must be equipped with high-performance hydraulic cylinders to complete the unloading requirements.
We can customize more models of semi dump trailers for sale according to your special transportation needs. Such as: u shape dump trailer, rectangular tipper semi trailer, end dump truck trailer, tractor dump trailer, container tipper trailer, etc.

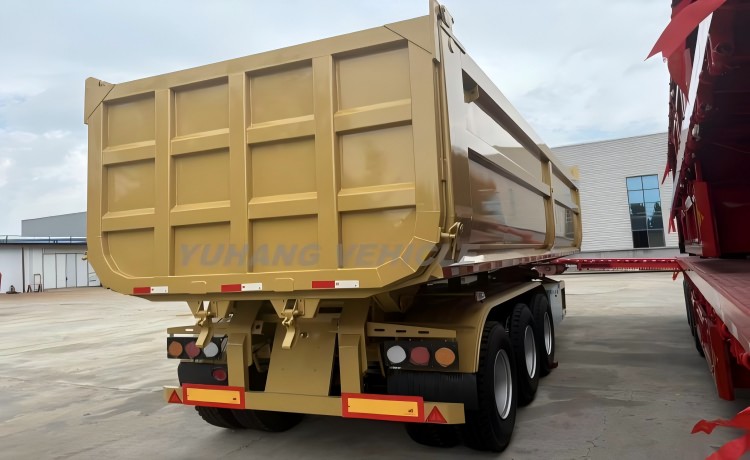

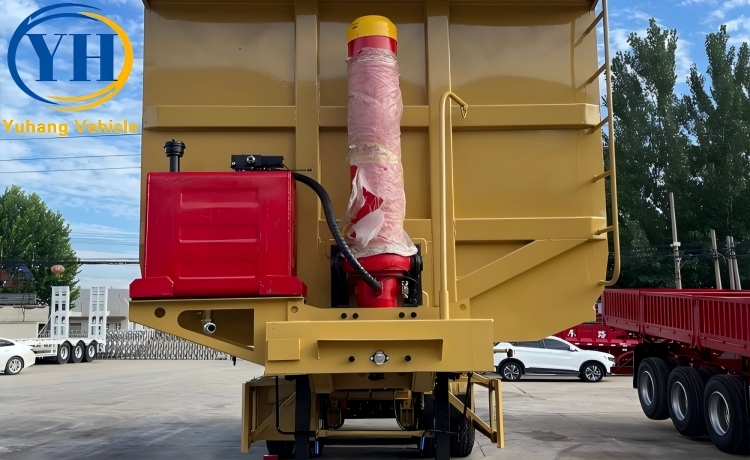

3 Axle Brand New Tipper Truck Trailer for Sale
Advantages:
1. Tri axle brand new tipper truck trailer for sale is a double vertical plate style main beam to increase the trailer's load-bearing capacity and adapt to more complex road conditions.
2. At the same time, the rear door of the 3 axle dump trailer adopts a double safety buckle design, which makes the trailer safer during transportation and the cargo is not easy to fall.
3. The sub-beam intersection of the dump semi trailer we provide to customers is locked and reinforced with a triangular plate to prevent deformation and cracking when overloaded.
4. In order to increase the stability and safety of the trailer when unloading, the YUHANG factory uses 4 heavy-duty flip brackets to enhance the lifting capacity of the trailer.

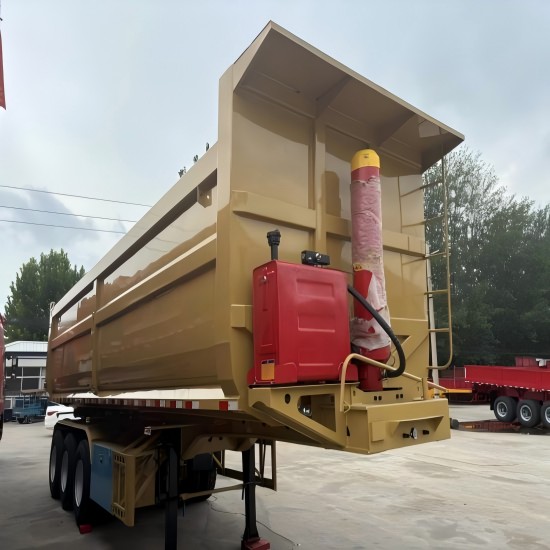

3 Axle Brand New Tipper Truck Trailer for Sale

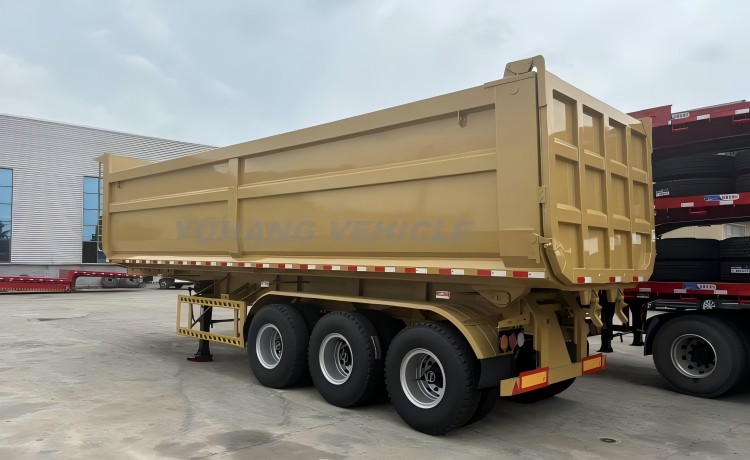

3 Axle Brand New Tipper Truck Trailer for Sale
Specifications:
Dimension: 9800mm*2500mm*3800mm
Main Beam: height 500mm, upper plate 20mm, middle plate 12mm, lower plate 18mm, material Q345B steel
Tare Weight: about 9600kg
Total Volume(m³): 30-40cbm
Side Wall Thickness: 4mm
End Plate: 8mm
Lifting System: HYVA lifting cylinder
Axle: 13t/16t, FUWA/BPW brand
Rim: 8.0-20 or 9.00-20
Tire: 8.25R20/10.00R20/11.00R20/12.00R22.5
Suspension: mechanical suspension
Spring Leaf: 90(w)mmx13(thickness)mmx10 layers
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded type)
Landing Gear: JOST brand
Brake System: WABCO
Electrical System: 24V, LED lights
ABS: optional
FAQ:
Q1: Can you meet my special needs?
A1: Of course. Because we are a direct manufacturing factory, we have experienced technical engineers and advanced production technology. We can provide you with professional customized trailer transportation solutions at any time.
Q2: How can I trust you?
A2: We have nearly 20 years of experience in trailer manufacturing and exporting, and have accumulated a lot of customer groups and customer reviews, which can be provided to you for free reference.
Q3: How long does it take for you to complete a trailer?
A3: This is based on the factory's production plan and order quantity, usually 15 working days.
Q4: Can I visit your factory?
A4: This is very pleasing. We welcome every new and old customer to visit the YUHANG factory at any time, and we provide you with a full range of reception services.
Q5: What is your after-sales policy?
A5: We have strict quality inspections on all trailers sold. At the same time, we provide a 1-year free quality assurance plan and perfect after-sales service for major components to safeguard the actual rights and interests of customers.
Description:
YUHANG brand new tipper truck trailer have different load capacities, and the common loading volumes are: 30 cubic meters, 35 cubic meters, 40 cubic meters, 45 cubic meters, and the maximum is 90 cubic meters. Our dump semi trailer have stable transportation performance and are safe and reliable when used.
This type of dump trailer is usually used to load and transport heavy bulk cargo. This requires that the cargo compartment of the dump trailer must be sturdy and durable and able to withstand a lot of weight pressure. At the same time, the dump truck trailer must be equipped with high-performance hydraulic cylinders to complete the unloading requirements.
We can customize more models of semi dump trailers for sale according to your special transportation needs. Such as: u shape dump trailer, rectangular tipper semi trailer, end dump truck trailer, tractor dump trailer, container tipper trailer, etc.

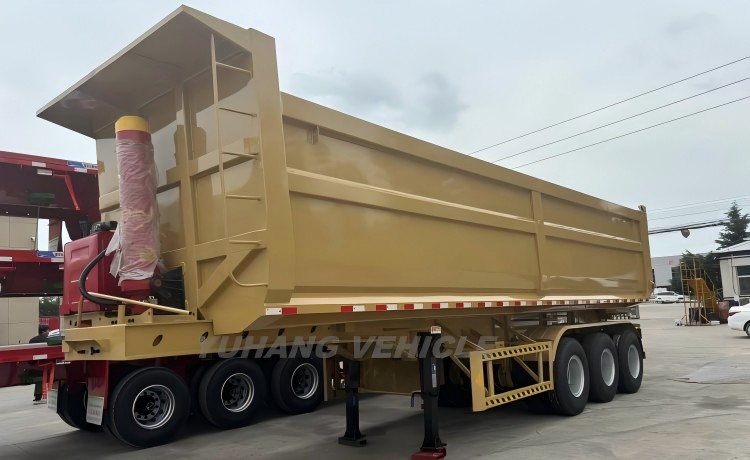

3 Axle Brand New Tipper Truck Trailer for Sale
Advantages:
1. Tri axle brand new tipper truck trailer for sale is a double vertical plate style main beam to increase the trailer's load-bearing capacity and adapt to more complex road conditions.
2. At the same time, the rear door of the 3 axle dump trailer adopts a double safety buckle design, which makes the trailer safer during transportation and the cargo is not easy to fall.
3. The sub-beam intersection of the dump semi trailer we provide to customers is locked and reinforced with a triangular plate to prevent deformation and cracking when overloaded.
4. In order to increase the stability and safety of the trailer when unloading, the YUHANG factory uses 4 heavy-duty flip brackets to enhance the lifting capacity of the trailer.

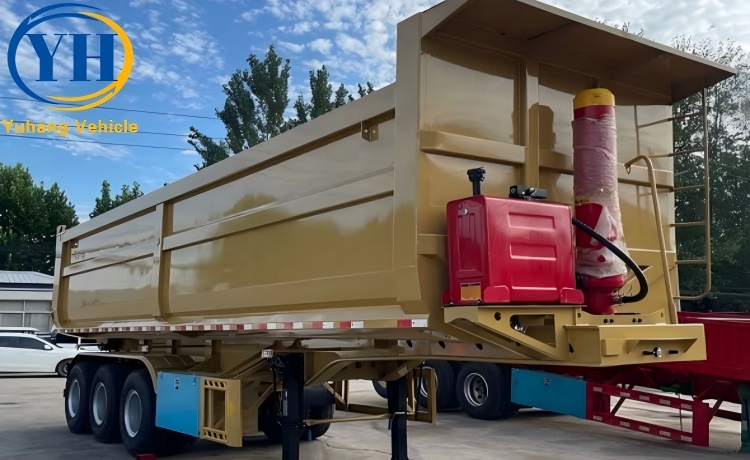

3 Axle Brand New Tipper Truck Trailer for Sale

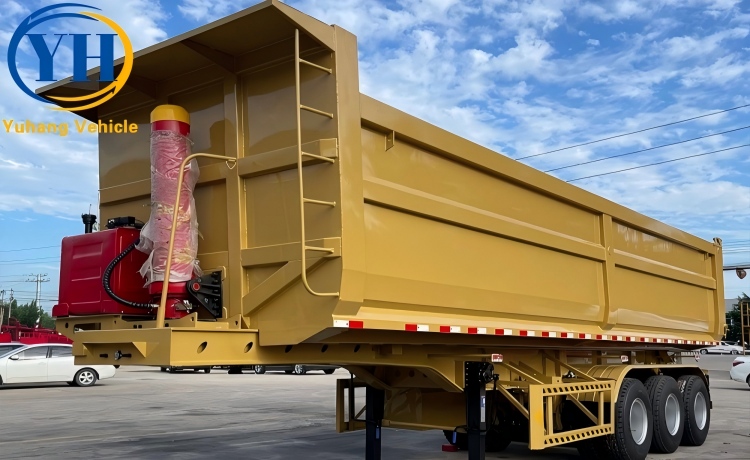

3 Axle Brand New Tipper Truck Trailer for Sale
