Description:
Our 3 axle v shape dry bulk trailer is a highly professional powder material transport vehicle. This is a special type of dedicated equipment that can transport bulk goods over any distance and climatic conditions. It has a payload volume of 35 cubic meters and uses cement tanker trailer to transport cement and dry bulk materials from the manufacturing plant to the site of use.
YUHANG dry bulk trailers can adopt V type and W type design structures, double-tube feeding, discharge speed and material residue rate all meet industry standard requirements. Bulk cement tanker trailer is commonly used transportation tools, which must ensure that the tank body has sufficient strength and compression resistance to improve the safety level of operation.
We have more bulk cement transport trailer for sale with more loading volumes and specifications. These trailers are all factory-low discount prices, saving you more costs and protecting your rights. At the same time, we can also design and customize bulk cement trailers according to your usage needs to better meet your business.

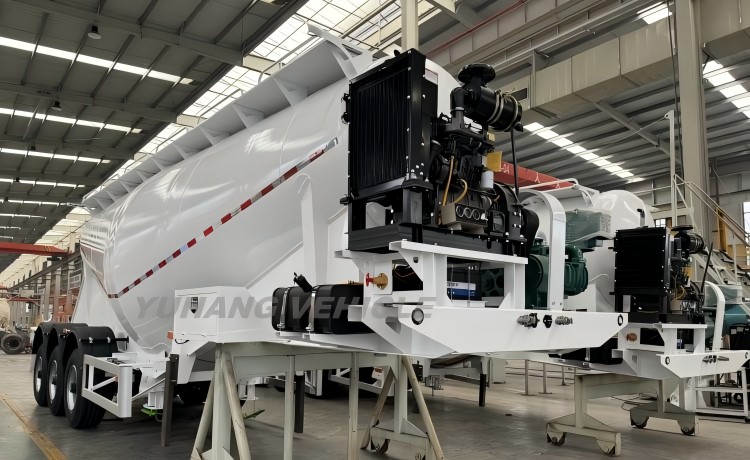

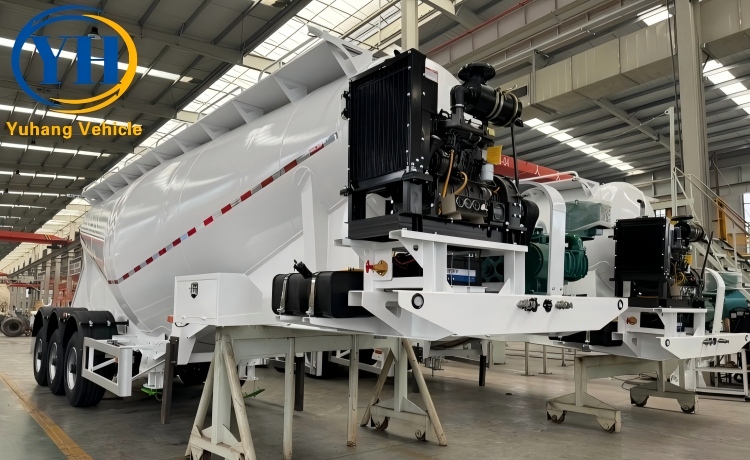

V Shape 3 Axle Dry Bulk Trailer for Sale
Advantages:
1. Adopting the world's most advanced manufacturing technology, the design structure is novel and durable, safe and reliable, which can create more profit value for you.
2. The dry bulk trailer has a strong carrying capacity and can adapt to more complex and bad road conditions and driving needs in bad weather.
3. The frame is a frame structure welded with two longitudinal beams and multiple cross beams, which forms a good load-bearing body for the tank.
4. The well-known brand double-cylinder air compressor is used to provide unloading compressed air, which greatly improves the working efficiency of the trailer and saves labor costs.

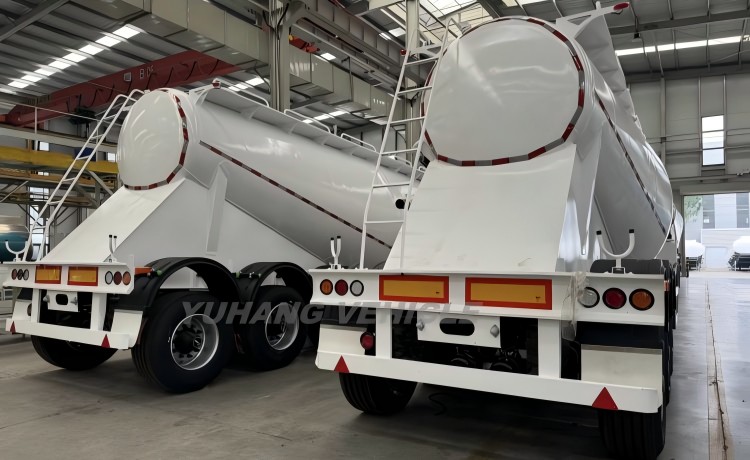

V Shape 3 Axle Dry Bulk Trailer for Sale

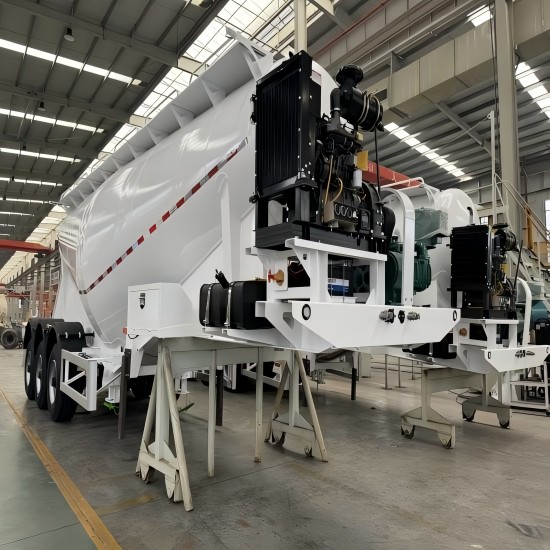

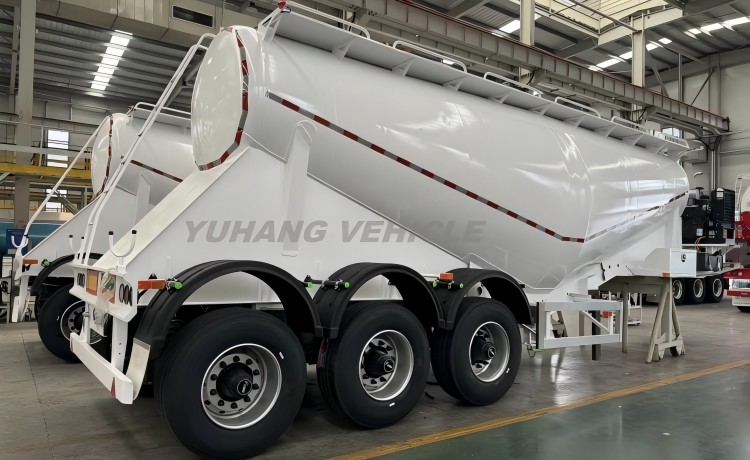

V Shape 3 Axle Dry Bulk Trailer for Sale
Specifications:
Model: 3 axle v shape dry bulk trailer for sale
Dimension: 12000mm*2500mm*3800mm
Tanker Body Material: 5mm high strength steel
Application: transport lime, bulk cement, fly ash, powder, etc
Compressor: 12m³ double cylinder air compressor
Manhole Cover: 2 units 500mm diameter
Discharging Valve: 4 inch valve
Diesel Engine: WEICHAI brand
Compressor: BOHAI brand
Axles: 3 pcs, 13 tons BPW/FUWA brand
Tire: 12 pcs*12R22.5, 315/80R22.5
Suspension: heavy duty mechanical suspension
Leaf Spring: 90(w)mmx13(thickness)mmx10 layers
Landing Gear: JOST brand 28 ton double speed
King Pin: JOST brand 3.5 inch
Brake System: T30/30 chamber, WABCO emergency valve
ABS: optional
Light: LED light
Voltage: 24V
Painting: polyurethane paint, with long service life, and avoid the vehicle getting rust
Accessories: one standard tool box, spare tire carrier
Shipping Terms: bulk carrier, Ro-Ro ship, 45ft HQ container
FAQ:
Q1: Can you meet my special needs?
A1: Of course. Because we are a direct manufacturing factory, we have experienced technical engineers and advanced production technology. We can provide you with professional customized trailer transportation solutions at any time.
Q2: How can I trust you?
A2: We have nearly 20 years of experience in trailer manufacturing and exporting, and have accumulated a lot of customer groups and customer reviews, which can be provided to you for free reference.
Q3: How long does it take for you to complete a trailer?
A3: This is based on the factory's production plan and order quantity, usually 15 working days.
Q4: Can I visit your factory?
A4: This is very pleasing. We welcome every new and old customer to visit the YUHANG factory at any time, and we provide you with a full range of reception services.
Q5: What is your after-sales policy?
A5: We have strict quality inspections on all trailers sold. At the same time, we provide a 1-year free quality assurance plan and perfect after-sales service for major components to safeguard the actual rights and interests of customers.
Description:
Our 3 axle v shape dry bulk trailer is a highly professional powder material transport vehicle. This is a special type of dedicated equipment that can transport bulk goods over any distance and climatic conditions. It has a payload volume of 35 cubic meters and uses cement tanker trailer to transport cement and dry bulk materials from the manufacturing plant to the site of use.
YUHANG dry bulk trailers can adopt V type and W type design structures, double-tube feeding, discharge speed and material residue rate all meet industry standard requirements. Bulk cement tanker trailer is commonly used transportation tools, which must ensure that the tank body has sufficient strength and compression resistance to improve the safety level of operation.
We have more bulk cement transport trailer for sale with more loading volumes and specifications. These trailers are all factory-low discount prices, saving you more costs and protecting your rights. At the same time, we can also design and customize bulk cement trailers according to your usage needs to better meet your business.

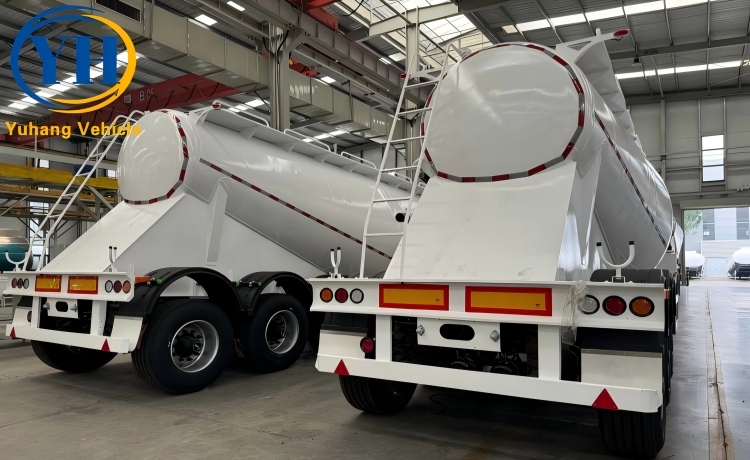

V Shape 3 Axle Dry Bulk Trailer for Sale
Advantages:
1. Adopting the world's most advanced manufacturing technology, the design structure is novel and durable, safe and reliable, which can create more profit value for you.
2. The dry bulk trailer has a strong carrying capacity and can adapt to more complex and bad road conditions and driving needs in bad weather.
3. The frame is a frame structure welded with two longitudinal beams and multiple cross beams, which forms a good load-bearing body for the tank.
4. The well-known brand double-cylinder air compressor is used to provide unloading compressed air, which greatly improves the working efficiency of the trailer and saves labor costs.

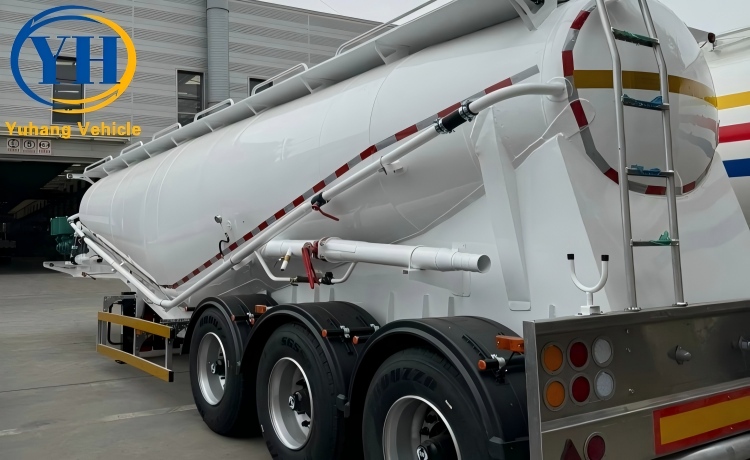

V Shape 3 Axle Dry Bulk Trailer for Sale

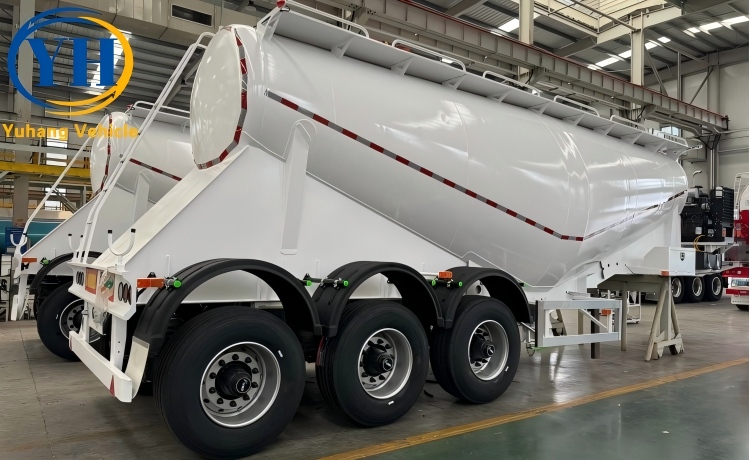

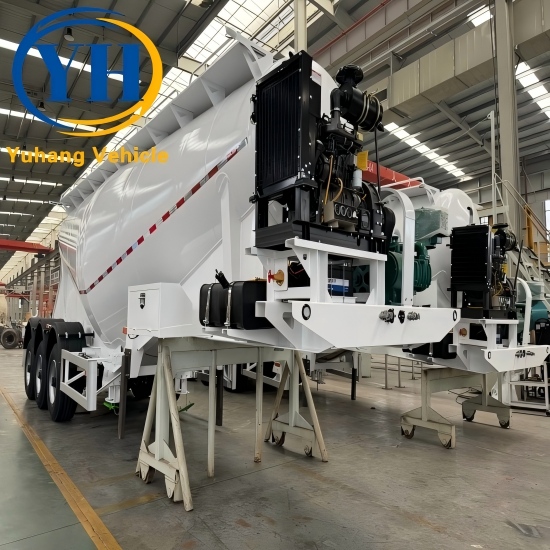

V Shape 3 Axle Dry Bulk Trailer for Sale
