Description:
We offer you a sturdy and durable 5 axle tip trailer for sale. This is a trailer specially designed for transporting heavy goods, such as: wet soil, sand and gravel, coal, ore, scrap iron, grain, etc. Its effective loading capacity can reach up to 120 tons.
YUHANG vehicle customizes this 5 axle tip trailer according to the actual transportation needs of customers. Its first two axles can be lifted when the trailer is empty to save fuel consumption and reduce the operating cost of the trailer. After the trailer is loaded with goods, the 5 axles evenly bear the weight of the goods.
We sell a large number of dump tipper semi trailer to many countries every year, and these dump trailers are of qualified quality and can be used normally. They have a wide range of applications in the construction industry, road construction, mining development, river excavation and other fields.

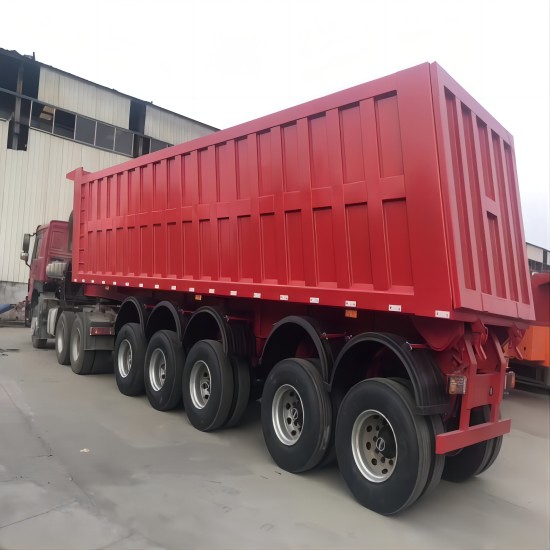

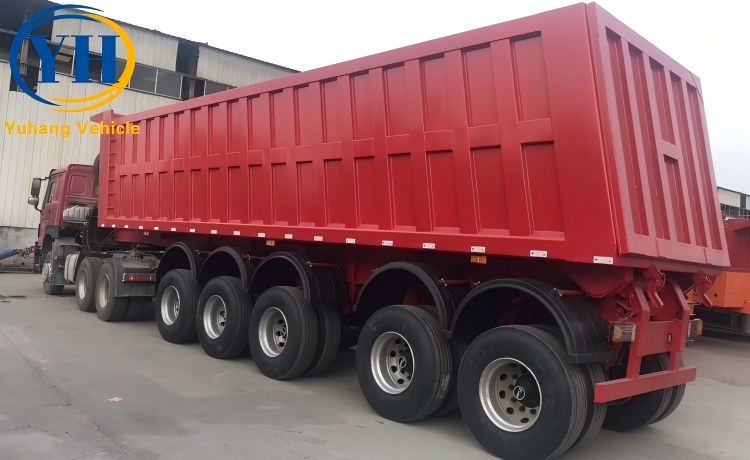

YUHANG 5 Axle Tip Trailer for Sale
Advantages:
1. Our 5 axle tip trailer is equipped with HYVA 214 hydraulic cylinder, which not only has strong lifting power but also has strong and reliable quality, and will never have the risk of rollover.
2. The rear compartment of the dump trailer uses 4 flip brackets, which makes it easy to control the cargo when unloading, improving work efficiency.
3. The suspension system is made of heavy-duty high-strength steel plate, with a 10mm thickness and a 70mm diameter center pin, which greatly improves the stability of the trailer during transportation.
4. Brand new dump trailer for sale uses world-renowned brand parts, with a safe service life of more than 10 years, maintenance-free, and lower operating costs.

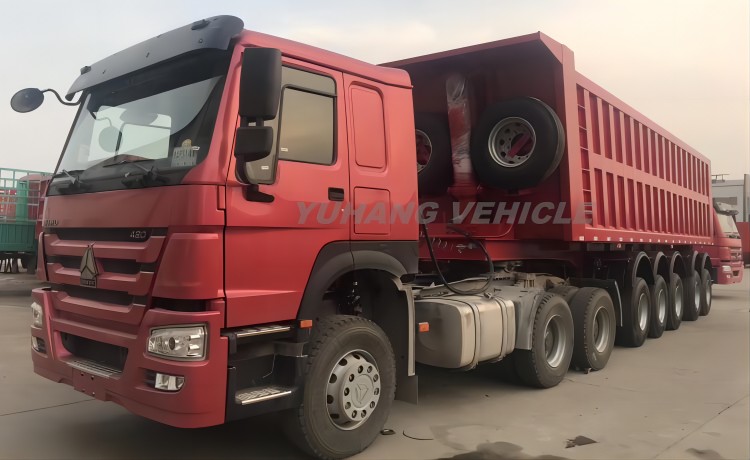

YUHANG 5 Axle Tip Trailer for Sale

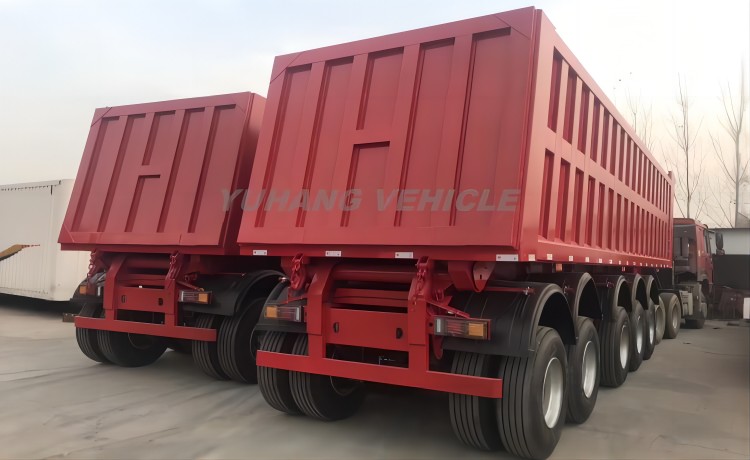

YUHANG 5 Axle Tip Trailer for Sale
Specifications:
External Dimension: 12500mm*2500mm*4000mm
Main Beam: height 530mm, upper plate 22mm, middle plate 12mm, lower plate 20 mm, material Q345b steel
Bottom Platform: 6mm thick checkered plate
Sidewall Thickness: 4mm
Total Capacity: 120 ton
End Plate: 10mm
Lifting System: HYVA 214 hydraulic cylinders
Axle: 5*13t/16t, FUWA/BPW brand
Rim: 8.0-20 or 9.00-20
Tire: 20*11.00R20/12R22.5
Suspension: heavy duty mechanical suspension
Spring Leaf: 100(w)mmx16(thickness)mmx12 layers
King Pin: JOST brand 3.5 inch (bolted or welded type)
Landing Gear: JOST brand 28 tons
ABS: optional
Valve: WABCO valve
Light: LED light
Voltage: 24V
Tool Box: 1 set
Shipping Terms: by RoRo, bulk carrier or container
FAQ:
Q1: Can you meet my special needs?
A1: Of course. Because we are a direct manufacturing factory, we have experienced technical engineers and advanced production technology. We can provide you with professional customized trailer transportation solutions at any time.
Q2: How can I trust you?
A2: We have nearly 20 years of experience in trailer manufacturing and exporting, and have accumulated a lot of customer groups and customer reviews, which can be provided to you for free reference.
Q3: How long does it take for you to complete a trailer?
A3: This is based on the factory's production plan and order quantity, usually 15 working days.
Q4: Can I visit your factory?
A4: This is very pleasing. We welcome every new and old customer to visit the YUHANG factory at any time, and we provide you with a full range of reception services.
Q5: What is your after-sales policy?
A5: We have strict quality inspections on all trailers sold. At the same time, we provide a 1-year free quality assurance plan and perfect after-sales service for major components to safeguard the actual rights and interests of customers.
Description:
We offer you a sturdy and durable 5 axle tip trailer for sale. This is a trailer specially designed for transporting heavy goods, such as: wet soil, sand and gravel, coal, ore, scrap iron, grain, etc. Its effective loading capacity can reach up to 120 tons.
YUHANG vehicle customizes this 5 axle tip trailer according to the actual transportation needs of customers. Its first two axles can be lifted when the trailer is empty to save fuel consumption and reduce the operating cost of the trailer. After the trailer is loaded with goods, the 5 axles evenly bear the weight of the goods.
We sell a large number of dump tipper semi trailer to many countries every year, and these dump trailers are of qualified quality and can be used normally. They have a wide range of applications in the construction industry, road construction, mining development, river excavation and other fields.

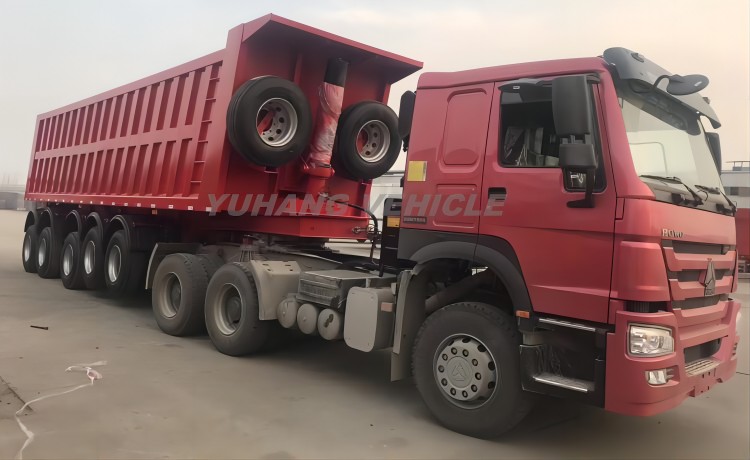

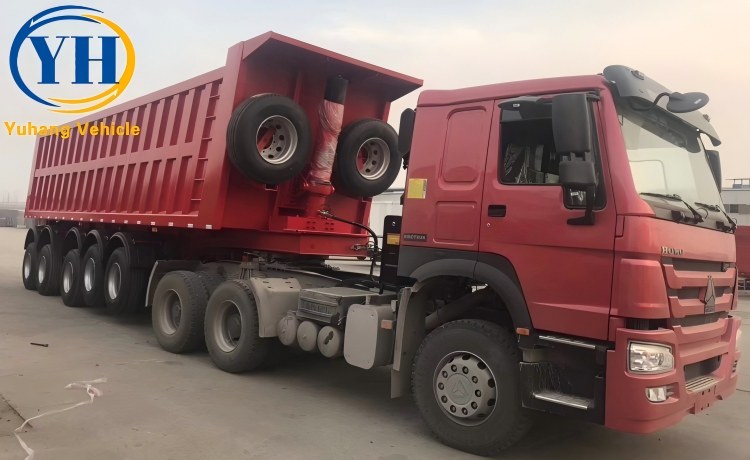

YUHANG 5 Axle Tip Trailer for Sale
Advantages:
1. Our 5 axle tip trailer is equipped with HYVA 214 hydraulic cylinder, which not only has strong lifting power but also has strong and reliable quality, and will never have the risk of rollover.
2. The rear compartment of the dump trailer uses 4 flip brackets, which makes it easy to control the cargo when unloading, improving work efficiency.
3. The suspension system is made of heavy-duty high-strength steel plate, with a 10mm thickness and a 70mm diameter center pin, which greatly improves the stability of the trailer during transportation.
4. Brand new dump trailer for sale uses world-renowned brand parts, with a safe service life of more than 10 years, maintenance-free, and lower operating costs.

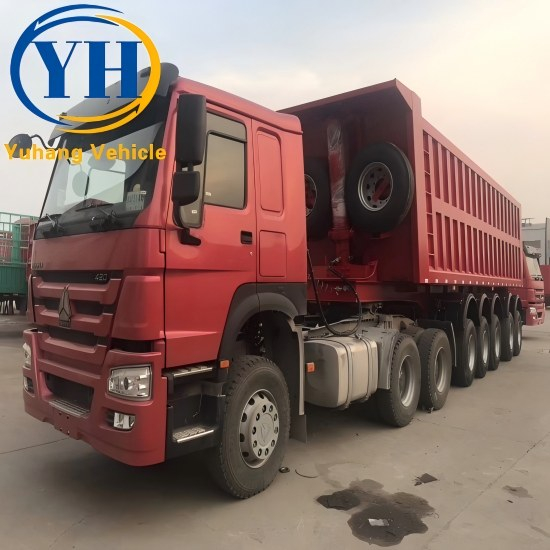

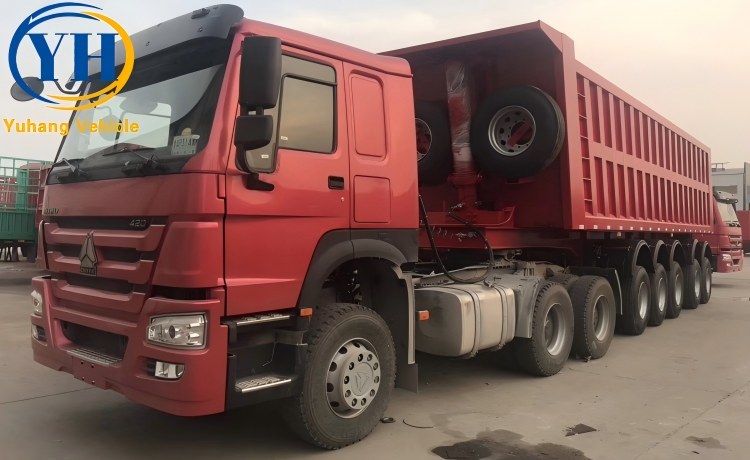

YUHANG 5 Axle Tip Trailer for Sale

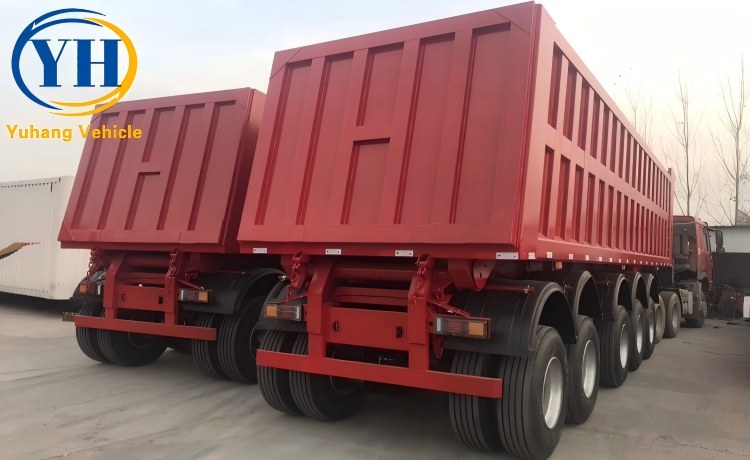

YUHANG 5 Axle Tip Trailer for Sale
