Description:
Our air suspension 2 axle flat trailer is a very popular semi trailer model from YUHANG. It is deeply loved and repeatedly purchased by customers, and has been exported to more than 70 countries including Nigeria, Zimbabwe, Mexico, Costa Rica, etc.
This trailer can transport 20 foot, 40 foot containers and other precision instruments and valuables. At the same time, YUHANG can also provide 2 axle/3 axle/4 axle flat deck trailers for sale with an effective loading capacity of 30-100 tons.
YUHANG is a professional flatbed semi trailer manufacturer. We have our own physical processing factory and experienced design engineers. We can design and customize flatbed semi trailers for you according to your special needs to make it more suitable for your transportation business.

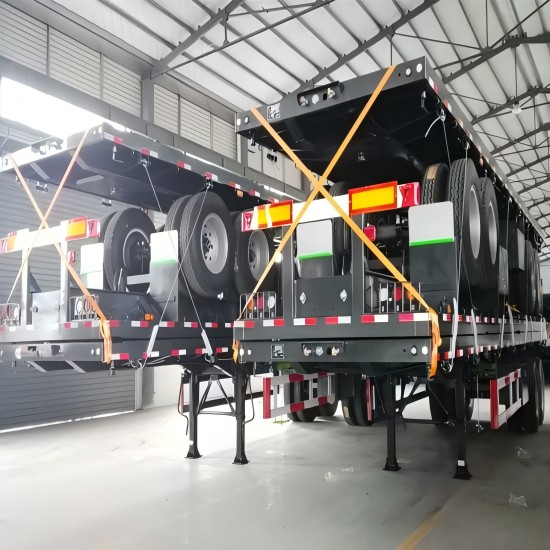

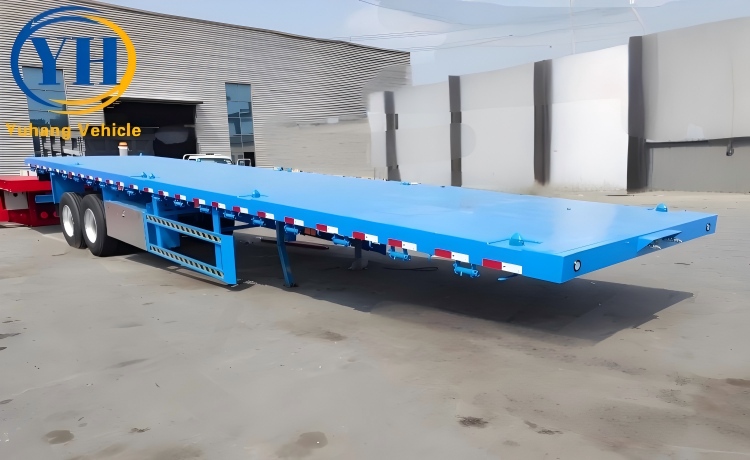

Airbag Suspension 2 Axle Flat Trailer for Sale
Advantages:
1. All air suspension 2 axle flat trailers are made of high-strength steel plate material, which can make the transport trailer have higher loading capacity and longer service life.
2. YUHANG uses advanced robot automatic welding technology to weld the main beam and side beam of the trailer, making it more solid, strong and durable without cracking.
3. All parts are world-renowned brand accessories to ensure the stability and safety performance of the vehicle. At the same time, the vehicle is sprayed with polyurethane paint, which has beautiful appearance and effective rust prevention.

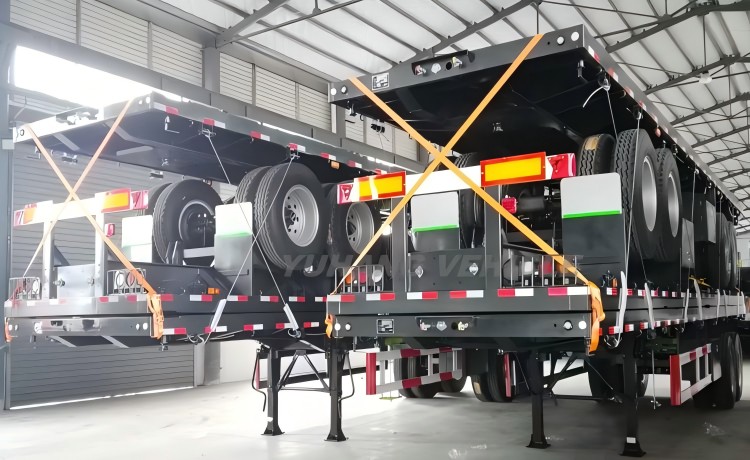

Airbag Suspension 2 Axle Flat Trailer for Sale

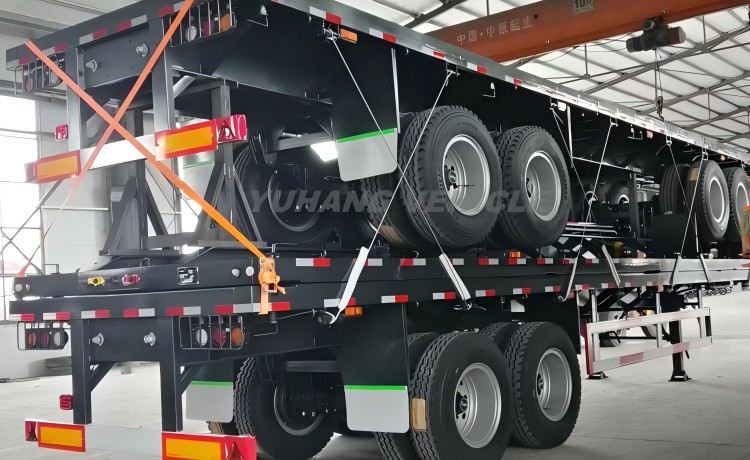

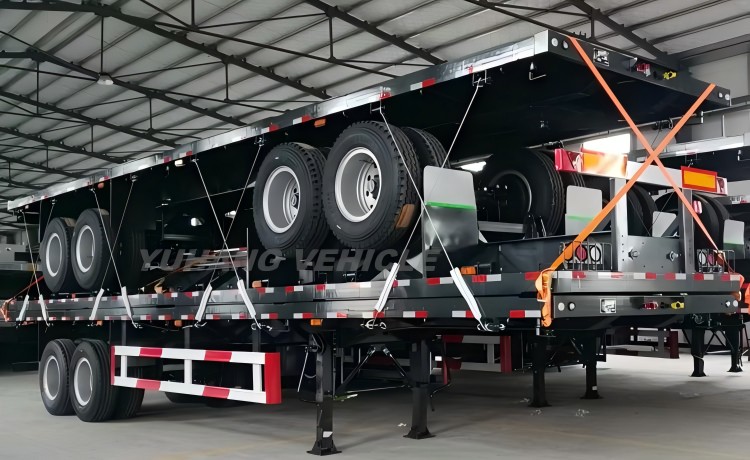

Airbag Suspension 2 Axle Flat Trailer for Sale
Specifications:
Dimension: 12500x2550x1600mm
Application: transport 20ft, 40ft container
Loading Capacity: 50 ton
Main Beam: height 500mm, upper plate 14mm, middle plate 8mm, bottom plate 16mm, material Q345 steel
Side Beam: 16mm steel channel
Platform: 3mm-thick checkered plate
Axles: 2 axles*13T FUWA/BPW brand
Tire: 8 units*12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5
Suspension: high quality air suspension
Spring Leaf: 90(w)mmx13(thickness)mmx10 layers
King Pin: 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand 28 tons
Twist Locks: 12 pcs THT locks
Brake Valve: WABCO
ABS: optional
Light: LED light
Voltage: 24V
Accessories: one standard tool box, spare tire carrier
Shipping Terms: bulk carrier, Ro-Ro ship or container
FAQ:
Q1: Can you meet my special needs?
A1: Of course. Because we are a direct manufacturing factory, we have experienced technical engineers and advanced production technology. We can provide you with professional customized trailer transportation solutions at any time.
Q2: How can I trust you?
A2: We have nearly 20 years of experience in trailer manufacturing and exporting, and have accumulated a lot of customer groups and customer reviews, which can be provided to you for free reference.
Q3: How long does it take for you to complete a trailer?
A3: This is based on the factory's production plan and order quantity, usually 15 working days.
Q4: Can I visit your factory?
A4: This is very pleasing. We welcome every new and old customer to visit the YUHANG factory at any time, and we provide you with a full range of reception services.
Q5: What is your after-sales policy?
A5: We have strict quality inspections on all trailers sold. At the same time, we provide a 1-year free quality assurance plan and perfect after-sales service for major components to safeguard the actual rights and interests of customers.
Description:
Our air suspension 2 axle flat trailer is a very popular semi trailer model from YUHANG. It is deeply loved and repeatedly purchased by customers, and has been exported to more than 70 countries including Nigeria, Zimbabwe, Mexico, Costa Rica, etc.
This trailer can transport 20 foot, 40 foot containers and other precision instruments and valuables. At the same time, YUHANG can also provide 2 axle/3 axle/4 axle flat deck trailers for sale with an effective loading capacity of 30-100 tons.
YUHANG is a professional flatbed semi trailer manufacturer. We have our own physical processing factory and experienced design engineers. We can design and customize flatbed semi trailers for you according to your special needs to make it more suitable for your transportation business.

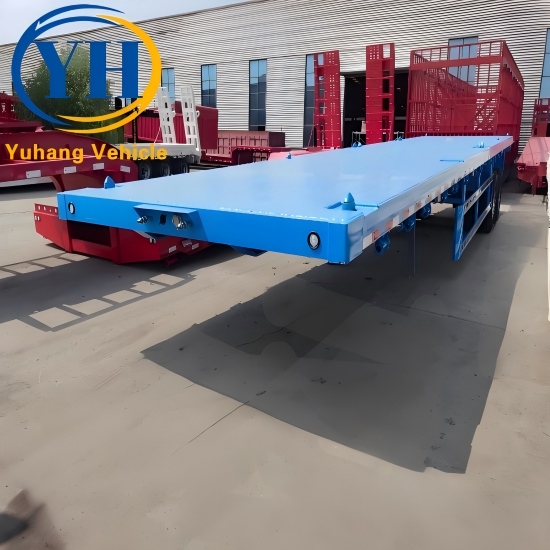

Airbag Suspension 2 Axle Flat Trailer for Sale
Advantages:
1. All air suspension 2 axle flat trailers are made of high-strength steel plate material, which can make the transport trailer have higher loading capacity and longer service life.
2. YUHANG uses advanced robot automatic welding technology to weld the main beam and side beam of the trailer, making it more solid, strong and durable without cracking.
3. All parts are world-renowned brand accessories to ensure the stability and safety performance of the vehicle. At the same time, the vehicle is sprayed with polyurethane paint, which has beautiful appearance and effective rust prevention.

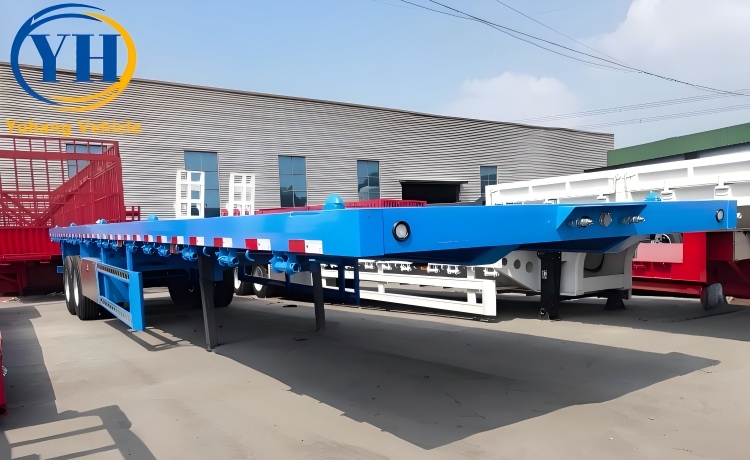

Airbag Suspension 2 Axle Flat Trailer for Sale

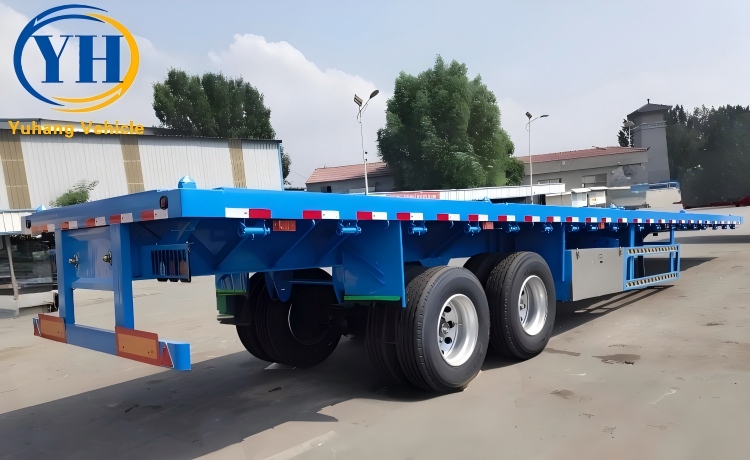

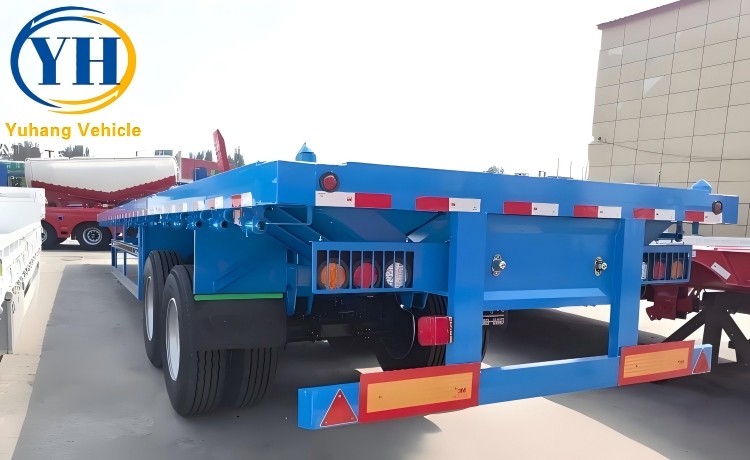

Airbag Suspension 2 Axle Flat Trailer for Sale
