Description:
We have 5 axle high quality folding gooseneck trailer for sale with the best factory price. It is widely used for the transportation of large machinery and equipment or vehicles, such as: excavators, loaders, cranes, combine harvesters, buses, pipeline components, etc. Flexible operating performance, multi-function and easy loading and unloading make foldable and removable gooseneck trailer an important means of transportation.
Compared with traditional mechanical ramps, folding gooseneck trailers provide a longer loading ramp, so that large and heavy goods can be easily and safely moved to the cargo loading platform. When it is unfolded, it contacts the ground to form a slope with a small angle, which is convenient for loading and unloading of goods and provides a very safe way of loading and unloading.
The neck of the newly upgraded high quality folding gooseneck trailer of YUHANG can be folded to the ground, which is a hydraulic folding design structure. When the structure is folded, the folding gooseneck trailer for sale is connected to the tractor for transportation. We can provide you with more specifications and types of folding gooseneck trailers for you to choose from.

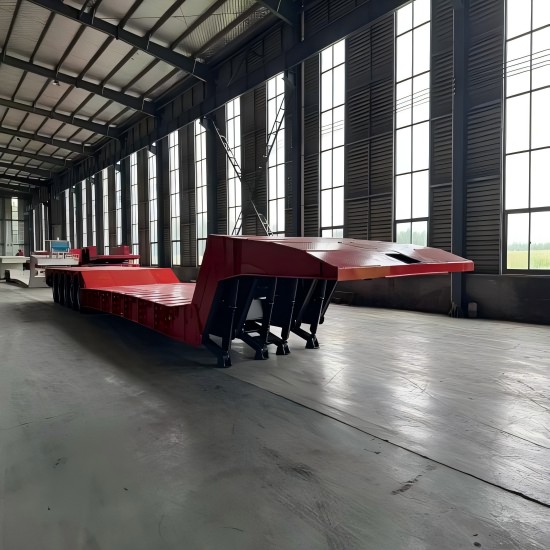

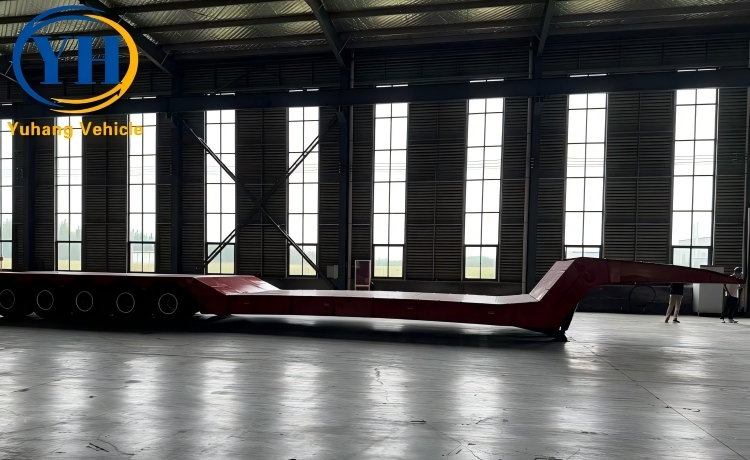

High Quality 5 Axle Folding Gooseneck Trailer for Sale
Advantages:
1. The gooseneck of the folding gooseneck trailer can be folded, so that the gooseneck can be stored when the trailer is not needed, saving storage space and making the trailer more flexible.
2. Our 5 axle high quality folding gooseneck trailer has better safety performance and can effectively reduce the potential accidents during transportation.
3. By lowering the center of gravity of the trailer, it not only makes loading and unloading more time-saving and labor-saving, but also significantly improves the safety and stability during transportation, especially when transporting large agricultural machinery and equipment.
4. The folding gooseneck semi trailer is an advanced transportation tool with a wide range of characteristics and application scenarios. It can improve transportation efficiency while ensuring transportation safety. It is an indispensable and important tool in modern logistics transportation.

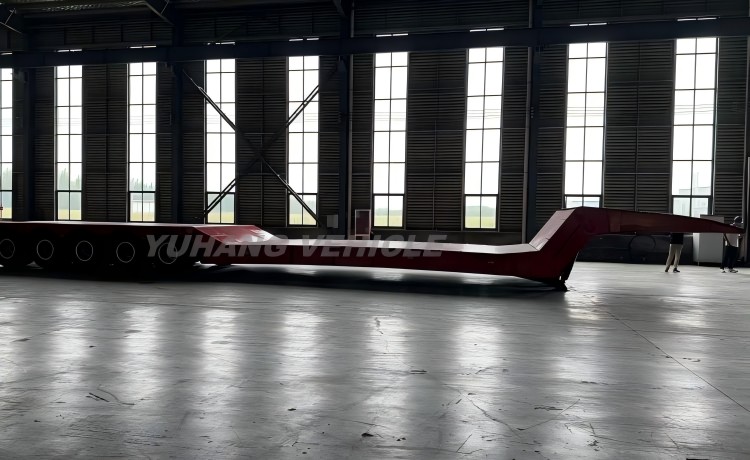

High Quality 5 Axle Folding Gooseneck Trailer for Sale

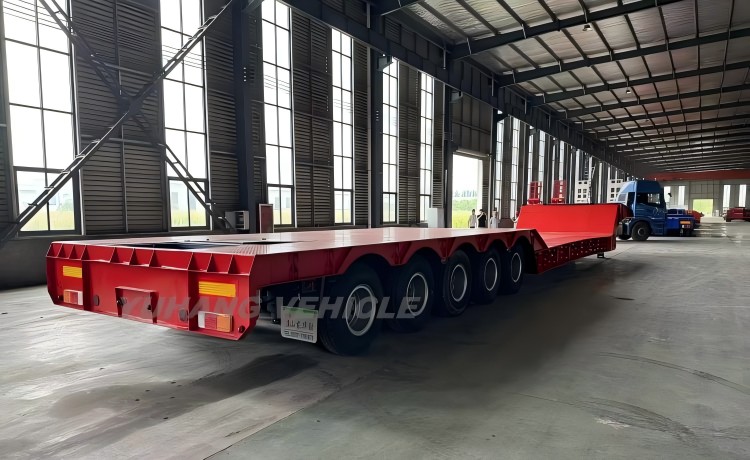

High Quality 5 Axle Folding Gooseneck Trailer for Sale
Specifications:
Overall Dimension: 18000*3500*1800mm
Loading Capacity: 120 ton
Tare Weight: about 10 tons
Main Beam: height 500mm; width 230mm; side beam 250 I-beam 10/8/10mm; material high-strength Q345B steel

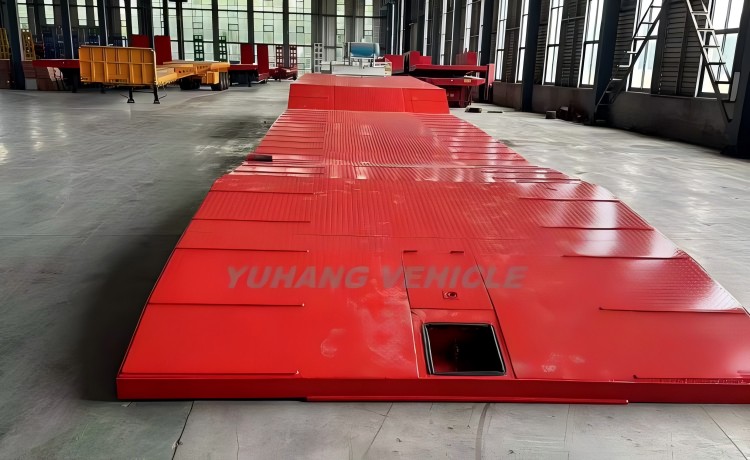

Bottom Platform: 5mm thick, checkered plate
Axle: 5 axles*13 ton, 16 ton*FUWA/BPW brand
Tire: 20 units, 12R22.5
Suspension: heavy duty mechanical suspension
Spring Leaf: 120(w)mmx16(thickness)mmx10 layers
Landing Gear: JOST brand
Hydraulic Cylinder: HYVA 12KW diesel engine with hydraulic station
Ramp: spring or hydraulic type
ABS: optional
Valve: WABCO valve
Light: LED light
Voltage: 24V
Tool Box: 1 set standard
Painting: 1 coat of primer, 2 coats of topcoat, polyurethane paint
FAQ:
Q1: Can you meet my special needs?
A1: Of course. Because we are a direct manufacturing factory, we have experienced technical engineers and advanced production technology. We can provide you with professional customized trailer transportation solutions at any time.
Q2: How can I trust you?
A2: We have nearly 20 years of experience in trailer manufacturing and exporting, and have accumulated a lot of customer groups and customer reviews, which can be provided to you for free reference.
Q3: How long does it take for you to complete a trailer?
A3: This is based on the factory's production plan and order quantity, usually 15 working days.
Q4: Can I visit your factory?
A4: This is very pleasing. We welcome every new and old customer to visit the YUHANG factory at any time, and we provide you with a full range of reception services.
Q5: What is your after-sales policy?
A5: We have strict quality inspections on all trailers sold. At the same time, we provide a 1-year free quality assurance plan and perfect after-sales service for major components to safeguard the actual rights and interests of customers.
Description:
We have 5 axle high quality folding gooseneck trailer for sale with the best factory price. It is widely used for the transportation of large machinery and equipment or vehicles, such as: excavators, loaders, cranes, combine harvesters, buses, pipeline components, etc. Flexible operating performance, multi-function and easy loading and unloading make foldable and removable gooseneck trailer an important means of transportation.
Compared with traditional mechanical ramps, folding gooseneck trailers provide a longer loading ramp, so that large and heavy goods can be easily and safely moved to the cargo loading platform. When it is unfolded, it contacts the ground to form a slope with a small angle, which is convenient for loading and unloading of goods and provides a very safe way of loading and unloading.
The neck of the newly upgraded high quality folding gooseneck trailer of YUHANG can be folded to the ground, which is a hydraulic folding design structure. When the structure is folded, the folding gooseneck trailer for sale is connected to the tractor for transportation. We can provide you with more specifications and types of folding gooseneck trailers for you to choose from.

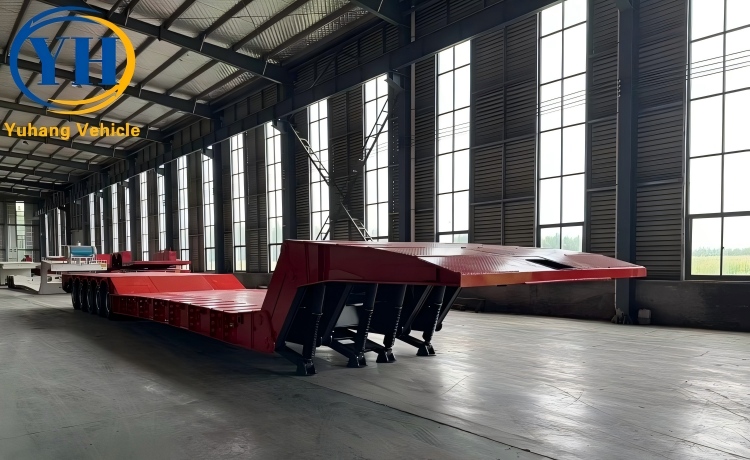

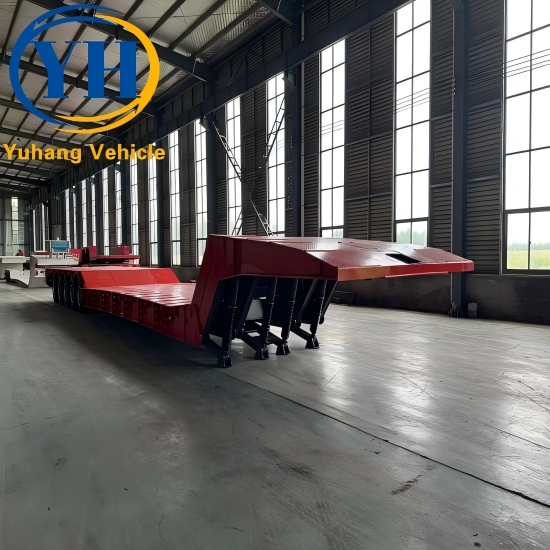

High Quality 5 Axle Folding Gooseneck Trailer for Sale
Advantages:
1. The gooseneck of the folding gooseneck trailer can be folded, so that the gooseneck can be stored when the trailer is not needed, saving storage space and making the trailer more flexible.
2. Our 5 axle high quality folding gooseneck trailer has better safety performance and can effectively reduce the potential accidents during transportation.
3. By lowering the center of gravity of the trailer, it not only makes loading and unloading more time-saving and labor-saving, but also significantly improves the safety and stability during transportation, especially when transporting large agricultural machinery and equipment.
4. The folding gooseneck semi trailer is an advanced transportation tool with a wide range of characteristics and application scenarios. It can improve transportation efficiency while ensuring transportation safety. It is an indispensable and important tool in modern logistics transportation.

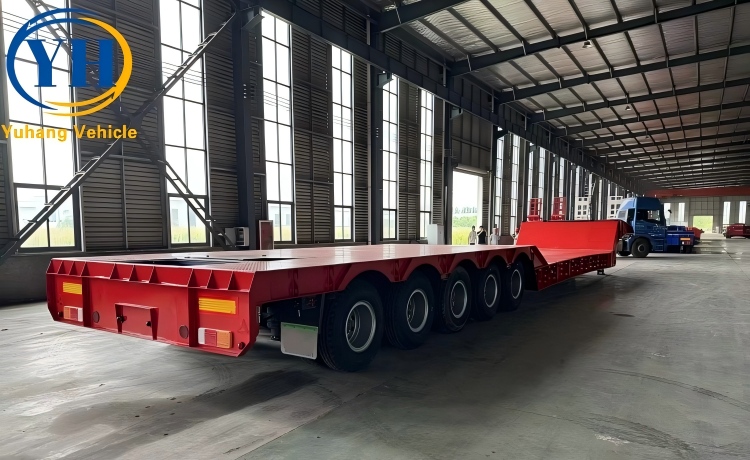

High Quality 5 Axle Folding Gooseneck Trailer for Sale
High Quality 5 Axle Folding Gooseneck Trailer for Sale
Specifications:
Overall Dimension: 18000*3500*1800mm
Loading Capacity: 120 ton
Tare Weight: about 10 tons
Main Beam: height 500mm; width 230mm; side beam 250 I-beam 10/8/10mm; material high-strength Q345B steel

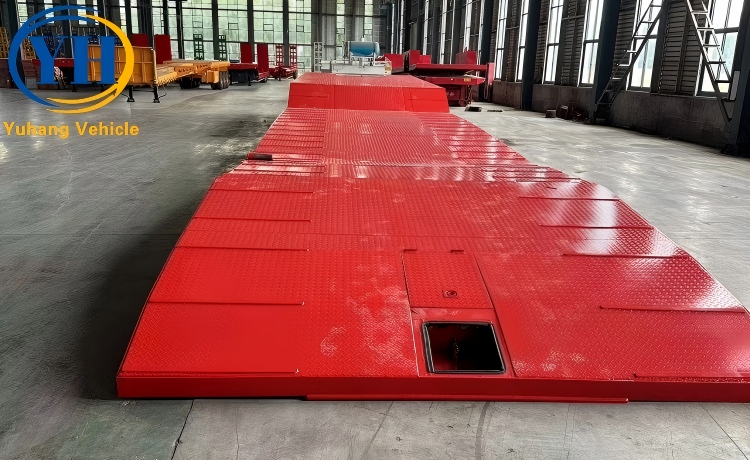

Bottom Platform: 5mm thick, checkered plate
